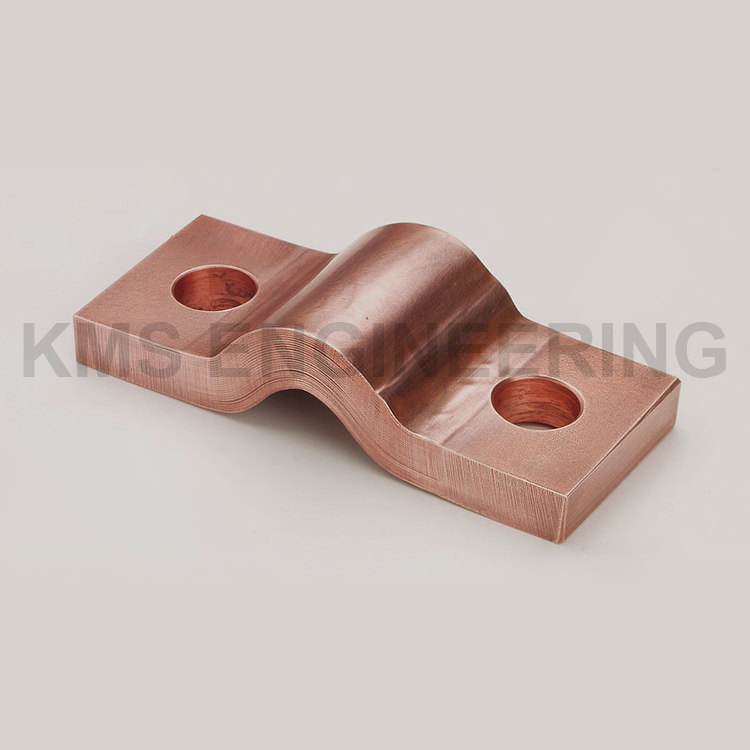

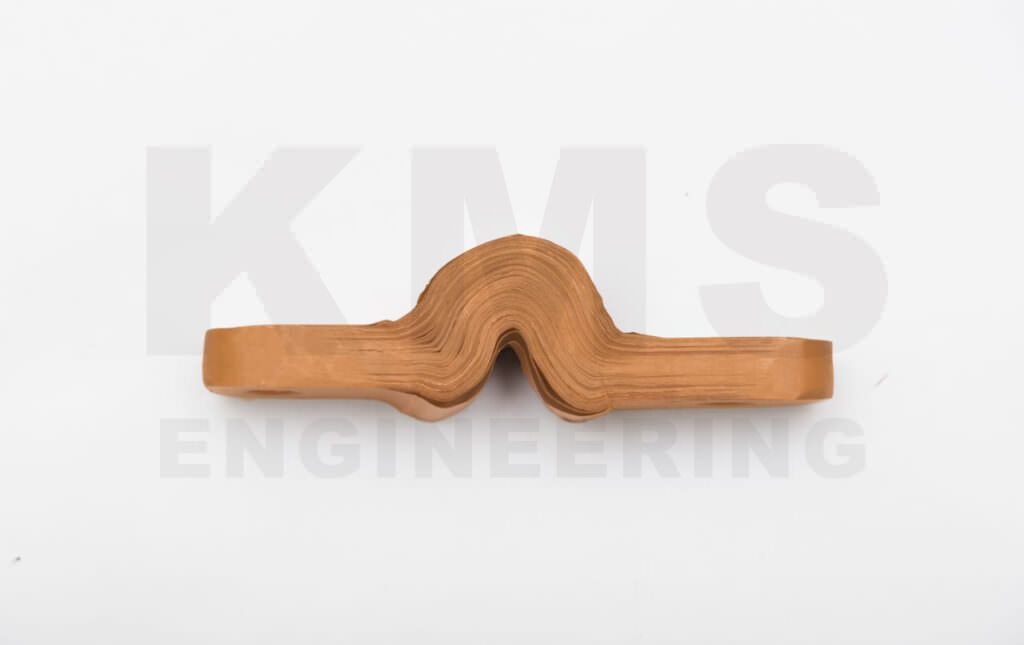

- Copper laminated connectors, also known as laminated busbars, are a versatile and durable component used in electrical power distribution systems. These connectors are made from layers of high-quality copper sheets that are laminated together to form a strong and flexible conductor.
- One of the main advantages of copper laminated connectors is their high conductivity. The multiple layers of copper sheets used to construct the connector provide an even higher degree of conductivity, making them an ideal choice for use in high-current applications, such as switchgear and power distribution boards.
- Another advantage of copper laminated connectors is their flexibility. The laminated design of the connector allows it to flex and bend without breaking, making it ideal for use in applications where the connector needs to be able to move and adjust to changing conditions.

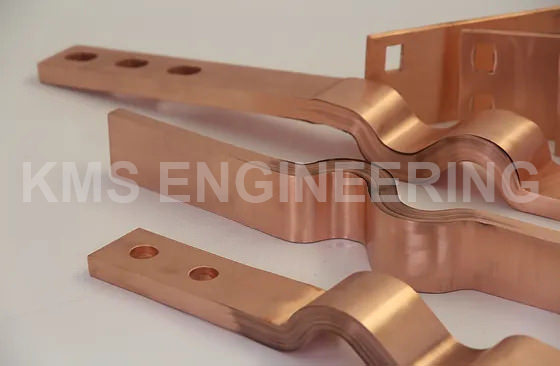

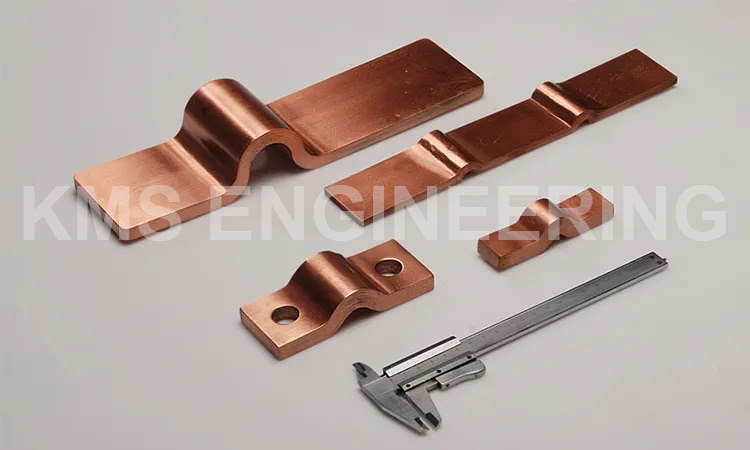

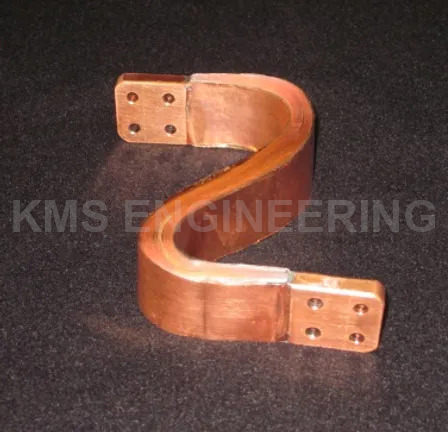

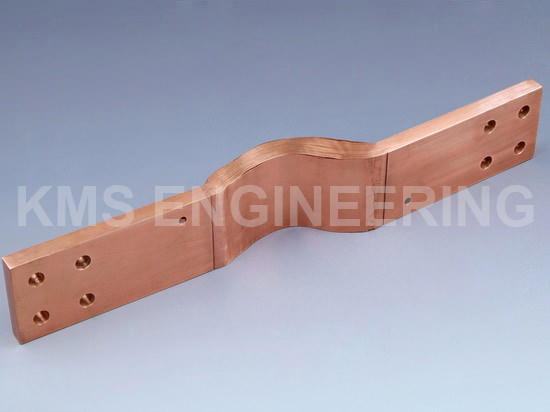

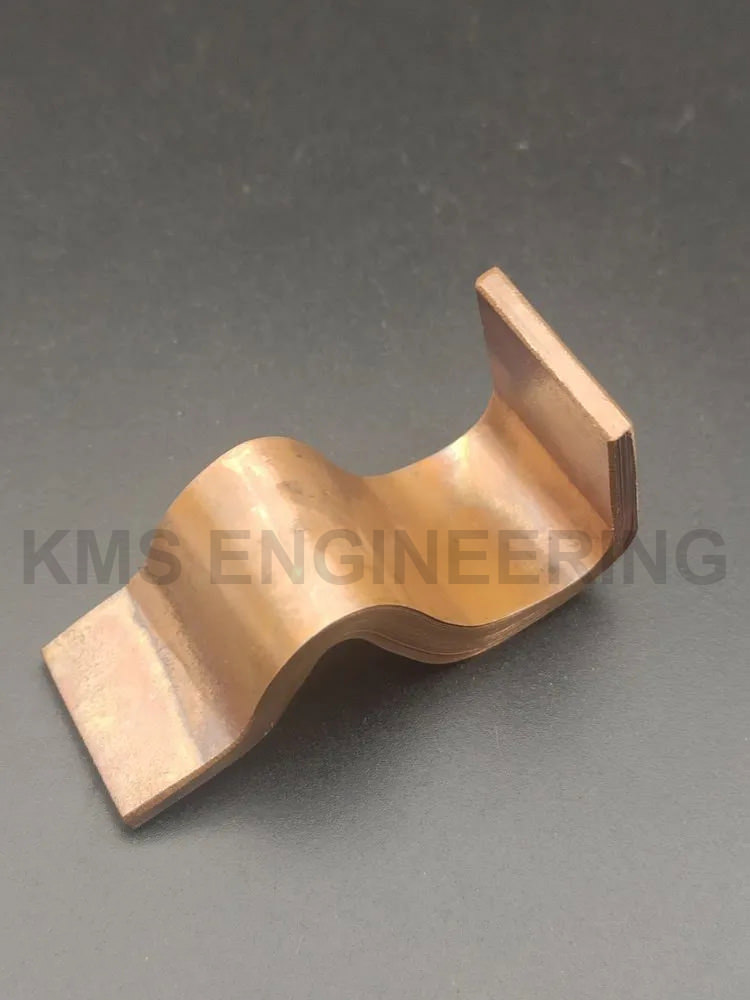

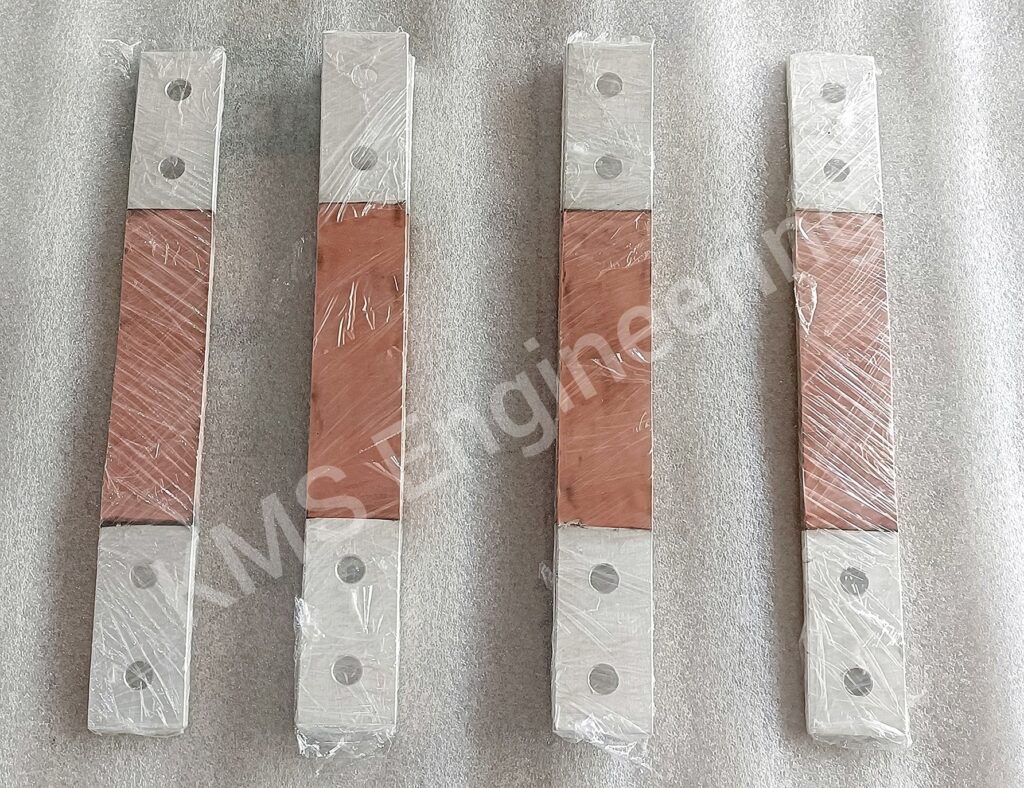

- We offer finest quality Copper laminated flexible jumpers manufactured from foils of ETP grade copper.
- Copper laminated connectors are also highly durable and resistant to corrosion. The laminated design helps to distribute the load and reduce stress on individual sheets, which can help to prolong the life of the connector. Copper is also highly resistant to corrosion and can withstand exposure to moisture and other harsh environments without losing its conductivity or structural integrity.

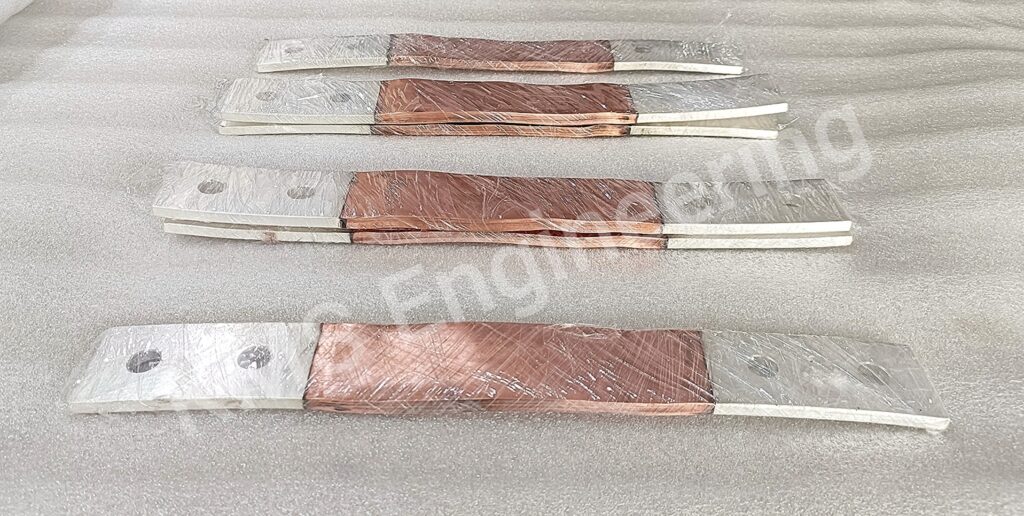

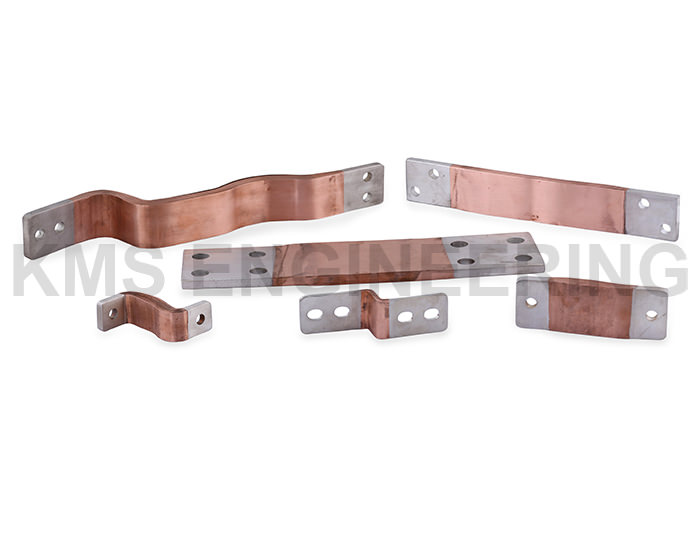

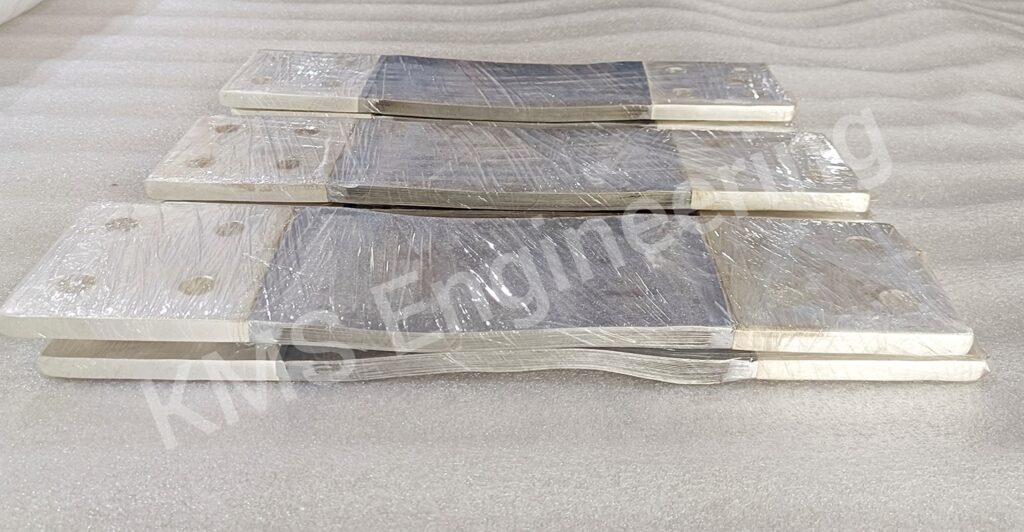

- It is also possible to drill, saw, braze and weld contact area without any problem. These jumpers have to realize movements inside machine & switchgear. These jumpers are individually designed and manufactured keeping in view the user’s requirement and application. Can also be provided with tin / silver plating.
- Standard connector range is from 25 sqmm to 2000 sqmm with the standard copper foil sizes from 0.05 to 0.5mm.
- When selecting a copper laminated connector, it is important to consider the specific application requirements, such as the desired level of conductivity, flexibility, and durability. Factors such as the thickness and number of layers used to construct the connector, as well as the material and coating used, can all impact its performance and suitability for a given application.
- These flexible laminated connectors used in wide applications including Switchgear industries, power plants, electric cars, transformer Vacuum circuit breakers, locomotives, etc.
